Top 10 Stainless Steel Conveyors What Buyers Need to Know

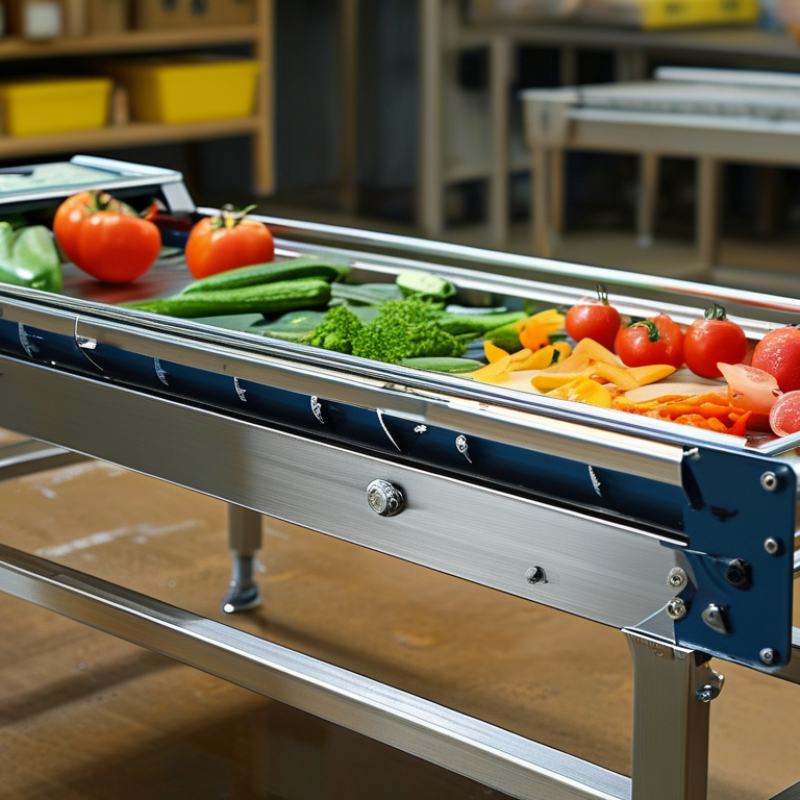

Buying stainless steel conveyors involves more than choosing a bright, corrosion-resistant frame. The correct system must match your product, cleaning routine, production speed, and available floor space. A conveyor moving wet vegetables needs different protection than one carrying packaged cartons. Small details matter. Open frames, sloped surfaces, sealed bearings, and smooth welds can reduce residue traps around the belt.
According to hygienic conveyor engineer John R. Henry, “A conveyor is only sanitary when its design makes cleaning simple, visible, and repeatable.” That principle deserves attention. Buyers should examine stainless steel grades, belt construction, load capacity, transfer points, motor protection, and washdown requirements. Grade 304 may suit many general applications, while grade 316 can offer stronger resistance in salty or chemically demanding environments. However, material choice alone does not guarantee durability.
This guide reviews ten stainless steel conveyors and explains what buyers should inspect before signing an order. It considers sanitation, maintenance access, noise, energy use, customization, and long-term operating cost. A polished surface can still conceal poor welds. An inexpensive conveyor can become expensive after frequent belt replacements and difficult cleaning.
There is no perfect model for every facility. That is easy to forget. The best choice depends on actual workflow, not attractive photographs or impressive specifications. Readers will find practical comparisons, purchasing questions, and warning signs that are often missed during initial evaluation. Real conditions matter: water pooling beneath a frame, a belt slipping during startup, or a motor overheating beside a washdown station.
Map the Top 10 Conveyor Types by Load, Speed, and 60–1,000 t/h Capacity
Top 10 Stainless Steel Conveyors: What Buyers Need to Know
Capacity is only one buying question. CEMA’s Belt Conveyors for Bulk Materials, 7th Edition, and ISO 5048 link throughput to belt width, speed, density, and loading conditions. The following ranges are practical screening values, not guarantees. Flat belt conveyors suit light loads at 0.3–1.5 m/s and roughly 60–150 t/h. Troughed belt units handle bulk solids at 1–4 m/s and 100–1,000 t/h. Cleated belts move inclined products at 0.2–0.8 m/s and 60–250 t/h. Modular plastic belts support hygienic handling at 0.1–0.8 m/s and 60–180 t/h.
Roller conveyors fit packaged loads, usually 0.2–1.0 m/s and below 120 t/h. Screw conveyors operate around 0.2–0.8 m/s, commonly reaching 60–250 t/h. Drag-chain conveyors manage abrasive or sticky materials at 0.3–0.8 m/s and 100–500 t/h. Bucket elevators lift bulk materials vertically at 1–3 m/s, with capacities near 60–400 t/h. Vibrating conveyors run at approximately 0.2–0.6 m/s and 60–300 t/h. Apron conveyors handle heavy, hot, or sharp feed at 0.1–0.5 m/s and 150–1,000 t/h. Stainless steel helps resist corrosion, but it does not fix poor loading design.
These figures need checking against moisture, particle size, surge loading, and sanitation requirements. A clean spreadsheet can still mislead. For example, a wet 500 t/h feed may require more width than a dry material at the same rate. CEMA calculations and ISO 5048 checks should guide final sizing. Real plant trials remain valuable, especially when speed increases dust, spillage, or product damage.
Top 10 Stainless Steel Conveyor Types: Load, Speed & Capacity
Representative engineering ranges for selecting stainless steel conveyors by maximum practical belt or carrier speed and nominal throughput.
Capacity values are indicative nominal ranges for dry bulk materials at typical fill levels and densities. Actual performance depends on material characteristics, conveyor width, inclination, loading method, sanitation requirements, and duty cycle.
Compare 304 and 316 Steel: 18% Cr, 8–14% Ni, and 2–3% Mo
Top 10 Stainless Steel Conveyors: What Buyers Need to Know
Material chemistry often decides whether a stainless steel conveyor survives daily washdown. Grade 304 usually contains about 18% chromium and 8% nickel. It provides dependable corrosion resistance for dry foods, packaging lines, and general processing areas. Grade 316 adds molybdenum, commonly around 2–3%. Its nickel content often reaches 10–14%. That molybdenum improves resistance to chlorides, salt residue, and aggressive cleaning chemicals.
Look closely at the environment. A 304 conveyor may perform well beside a bakery oven, but coastal air can expose its weakness. On a seafood line, 316 often offers a safer margin. Still, grade alone does not guarantee long service. Poor weld finishing can trap water and create dark corrosion marks. Crevices around fasteners deserve attention. Ask for smooth welds, suitable surface finishing, and documented material certificates.
The belt matters too. A 316 frame with unsuitable bearings can still fail early. Review product temperature, cleaning pressure, detergent concentration, and drainage. I have seen buyers focus heavily on nickel percentages while overlooking conveyor legs and hidden joints. That choice can become expensive. It is also worth questioning whether 316 is necessary everywhere. Using it across a low-risk, dry area may increase cost without improving performance. A practical specification often uses 304 for standard zones and 316 for exposed, chloride-heavy sections. Verify the details with the fabricator before ordering.
Calculate Belt Width, Motor Power, and 0.1–1.0 m/s Operating Speed
Top 10 Stainless Steel Conveyors: What Buyers Need to Know
Belt width should follow mass flow, bulk density, speed, and loading geometry. CEMA’s Belt Conveyors for Bulk Materials, 7th Edition, uses these variables for capacity selection. A practical estimate is Q = 3,600Aρvφ, where Q is tonnes per hour, A is loaded cross-sectional area, ρ is density, v is belt speed, and φ is the loading factor. For 10 t/h of product at 0.8 t/m³, 0.5 m/s, and 65% loading, the required area is about 0.0107 m². This may suggest a 400 mm belt, but skirt clearance and lump size can change the answer. Real installations are less tidy.
Motor power follows ISO 5048’s conveyor-power approach: calculate resistance, lift, acceleration, and pulley losses. The basic relationship is P = Fv/η. With 800 N effective pull, 0.5 m/s speed, and 80% efficiency, power is approximately 0.50 kW. At 0.1–1.0 m/s, power changes with speed when resistance stays constant. Inclines and frequent starts require additional margin. Oversizing is common. It can increase purchase cost and reduce operating efficiency. The U.S. Department of Energy’s Motor Systems Market Assessment reports that motor-driven equipment consumes about 68% of manufacturing electricity, so efficiency deserves serious attention. These calculations remain preliminary; testing actual load, moisture, and starting behavior is still necessary.
Assess IP Ratings, Total Cost, and 5–10-Year Maintenance Requirements
When comparing the top 10 stainless steel conveyors, buyers should treat IP ratings as operating requirements, not marketing labels.
IEC 60529 defines IP65 as dust-tight protection against water jets, while IP66 withstands more powerful water jets. IP69-rated equipment is designed for high-pressure, high-temperature cleaning.
However, an IP rating does not prove resistance to detergents, chlorides, or acidic residues. Confirm material grades, seals, weld quality, and drainage details with the supplier.
Total cost extends far beyond the purchase price.
Include installation, electrical controls, cleaning labor, spare parts, energy use, and production downtime. The U.S. Department of Energy’s Operations & Maintenance Best Practices Guide reports that preventive maintenance can reduce costs by 12–18% compared with reactive maintenance.
That figure is useful, but it is not universal. A conveyor carrying abrasive product may need more frequent inspections than a lightly loaded unit.
Numbers matter.
Build a five-to-ten-year maintenance model before approving the design.
Request expected belt, bearing, motor, sensor, and seal replacement intervals. Compare service access, lubrication points, washdown time, and spare-part availability.
PMMI research on food and beverage automation consistently identifies sanitation, labor efficiency, and unplanned downtime as major investment concerns.
A spreadsheet can still lie. Add a realistic downtime rate, cleaning schedule, and technician wage. Then test the model against a small pilot line before purchasing ten systems.
